SCISSOR LIFT SERIES

YL635K-1

2019-12-05 13:01:19

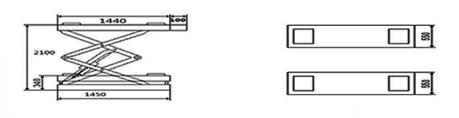

Technical Parameter
Capacity-----------------------------------------------3500kg
Lifting height----------------------------------------------2100mm
Lifting time-------------------------------------------------1.2m/min
Platform length------------------------------------------1540mm
Platform width----------------------------------------------550mm
Motor power----------------------------------380V/220V/2.2KW
Rated oil pressure-----------------------------------------20Mpa
Air pressure--------------------------------------------6~8kg/cm²
