DOUBLE COLUMN LIFTING MACHINE

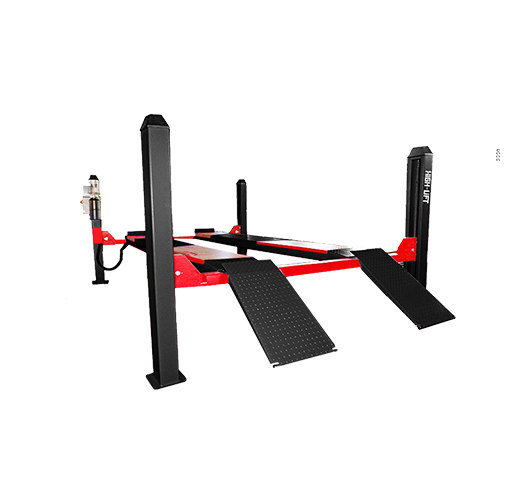

HL4500 FOUR-POST

2021-05-08 14:43:19

              Technical specification

Lifting capacity----------------------------------------------------------- 4000kg
Lifting height ------------------------------------------------1700mm+450mm
Min height ----------------------------------------------------------215mm
Lifting time----------------------------------------------------------- 60S
weight -------------------------------------------------------------------1375kg
Motor power ---------------------------------------------------------2.2kw
Overall height-------------------------------------------------------- 2220mm
Runway width------------------------------------------------------- 520mm
Runway lenght ----------------------------------------------------4500mm
Power supply -------------------------------------------220V/240V/380V/415
